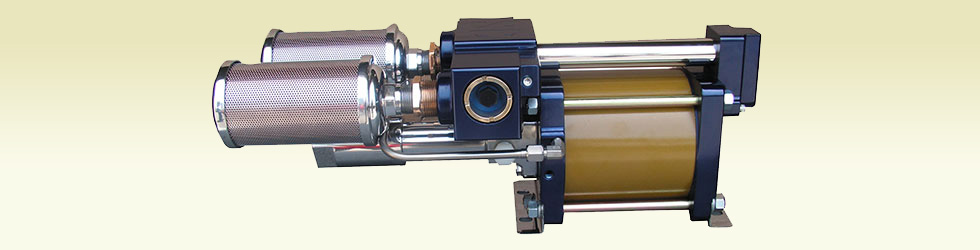

L6 High Volume Liquid Pump

Product Features and Specifications

  • General Product Information
    • schydraulic-l6pump
      HIGH FLOW CAPACITY
      DOUBLE ACTING, SINGLE STAGE
      COMPATIBLE WITH MOST FLUIDS
      STAINLESS STEEL WETTED PARTS
      AIR OPERATED - NO ELECTRICITY NEEDED
      THREE DIFFERENT PRESSURE RATIOS UP TO 11,200 PSI
      DIMENSIONALLY INTERCHANGEABLE WITH MOST COMPETITIVE MODEL PUMPS

      The SC L6 Series pump has a 6" diameter air cylinder with stainless steel wetted parts. This double acting pump is capable of hydraulic pressures up to 11,200-psi and is available in three pressure ratios: 40:1, 60:1 and 100:1.

      This pump is ideal for high flow at relatively high pressure applications. Nominal outlet flow ranges between 2-gpm to 1-gpm depending on outlet pressure and pump model. Maximum air consumption is approximately 200-SCFM at free flow (zero output pressure).

      It is designed to operate with air drive pressures between 15-psi and 100-psi under normal conditions and is dimensionally interchangeable with competitive model pumps. Typical applications include choke control operation, hydrostatic testing and press applications.

  • Applications
    • Press applications
      Hydrostatic testing
      High flow power units
      Sub-sea valve controls
      Choke control operations

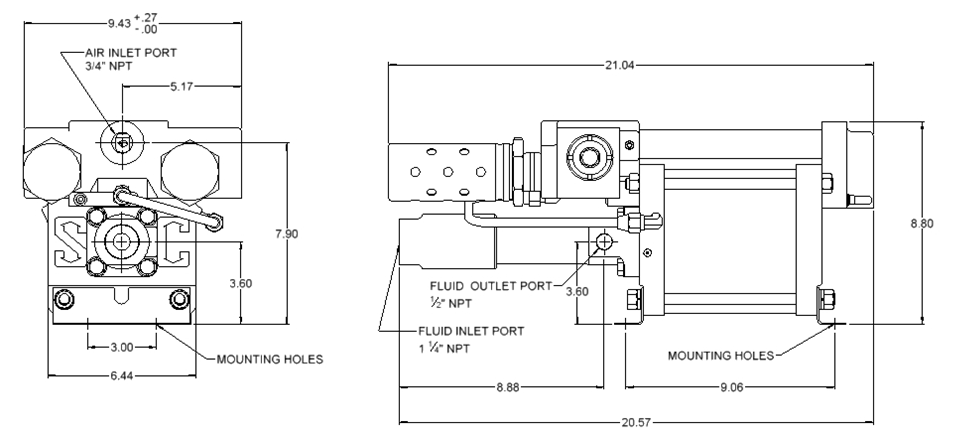

  • Dimensions
    • schydraulic-l6pumpdims
      Dash
      Number      		 Actual
      Ratio      		 Max. Outlet
      Pressure
      (100 psig
      Air Supply)      		 Displacement
      Per Cycle
      Cu. In.      		 Connection Ports NPT
      A
      Inlet      		 B
      Outlet
      40 40.3 3,950 6 1 1/4" 1/2"
      60 69 6,420 3.5 1 1/4" 1/2"
      100 115 11,200 2.1 1 1/4" 1/2"
  • Ordering
    • schydraulic-l6ordering
      TABLE 1 Pump Series Designation
      L6 6" Bore High Volume Pump
      TABLE 2 Air Motor Seals
      0 Buna-N (standard)
      V Viton
      TABLE 3 Hydraulic Section Seals
      0 Buna-N
      V Viton
      E EPR (Ethylene Propylene)
      TABLE 4 Modifications
      0 No modification
      TABLE 5 Hydraulic Section Material
      S Stainless Steel
      TABLE 6 Pressure Ratio
      40 40:1 Actual Ratio
      60 60:1 Actual Ratio
      100 100:1 Actual Ratio
      TABLE 7 Suffix Modifications
      BLANK No modification
      MD14 Counter Port

      Additional modifications may be included with an "M" suffix at the end of the model number.

  • Modifications

    • Remote Pilot: This option provides a 1/8" NPT female port for remotely controlling the start/stop of the pump by connecting an external air signal to actuate the air cycling valve. This modification is built in as standard and no special number is needed when ordering.

      		 chydraulic-m002mod

      M014 - Counter Port: This option provides a 5/8-18-UNF thread port on the air motor section of the pump for installing a mechanical cycle counter.
  • Performance Chart
    • schydraulic-l6-40perfchart schydraulic-l6-60perfchart schydraulic-l6-100perfchart
