10 & D Series Tubular Power Units

Product Features and Specifications

  • General Product Information
    • schydraulic-10-5seriespowerunit
      EASY TO INSTALL
      COMPACT AND LIGHTWEIGHT
      PRESSURES UP TO 65,000-PSI
      COMPONENTS INSTALLED ON A BASE PLATE
      AVAILABLE WITH ALL 10-SERIES PUMP MODELS

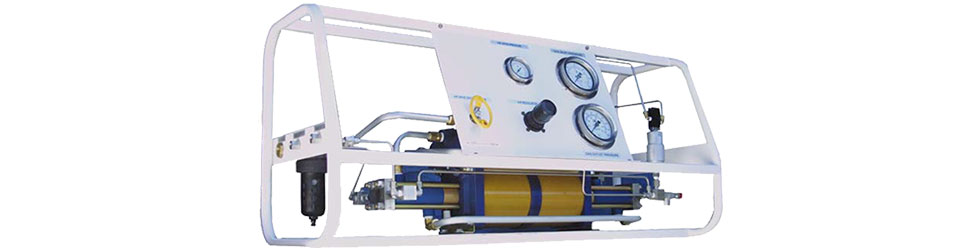

      These rugged power units are built to handle the toughest conditions.

      The tubular frame is constructed with cold rolled, heavy wall steel and finished with a thick powder coated paint.

      Each unit is equipped with a durable 2.2 gallon polyethylene reservoir, bleed valve, air controls, muffler, and protected high pressure gauge on most models.

      The weight of a power unit is only 30 to 40 pounds depending on the pump model selected.

      These portable power units are the perfect solution whenever high pressure is needed in the field and only a compressor is available. The only connections required are a 1/2" NPT port to the air drive and the pressure work port.

  • Applications
    • Staking
      Piercing
      Pressing
      Blanking
      Clamping
      Flow testing
      Metal forming
      Static and burst testing
      Hydraulic press operation

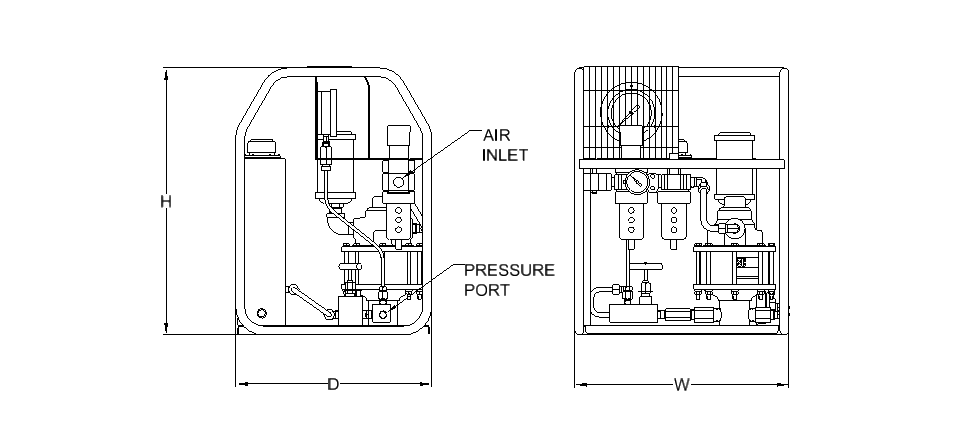

  • Dimensions
    • schydraulic-d&10seriespowerunitdims
      Model No.
      Standard      		 10 Series Hyd
      Section Code      		 D Series Hyd
      Section Code
      (Ratio)      		 Gauge
      Pressure      		 Overall Dimensions (in) Ports NPT
      W D H Air Drive Pressure
      S10016
      10-4 Pump      		 3 5:01 0-1,000 18 15 18.25 1/4" 3/8"
      5 10:01 0-2,000
      10 15:01 0-3,000 1/4"
      015, 020 30:1, 35:1 0-6,000
      30 55:01:00 0-10,000
      50 100:01:00 0-15,000
      80 140:01:00 0-20,000
      125 220:01:00 0-30,000
      S10017
      10-5 Pump      		 005, 007 10:1, 12:1 0-2,000 18 16.5 22.5 1/2" 1/2"
      10 20:01 0-3,000
      15 25:01:00 0-5,000 3/8"
      018, 020 30:1, 35:1 0-6,000
      030, 040 55:1, 70:1 0-10,000
      45 85:01:00 0-15,000
      60 105:01:00 0-15,000 1/4"
      80 140:01:00 0-20,000
      080-HF4 140:01:00 0-20,000 9/16"-18 *
      100 195:01:00 0-30,000 1/4"
      100-HF4 195:01:00 0-30,000 9/16"-18 *
      160 280:01:00 0-30,000 1/4"
      160-HF4 280:01:00 0-30,000 9/16"-18 *
      250 440:01:00 No Gauge ** 1/4"
      250-HF4 440:01:00 No Gauge ** 9/16"-18 *
      350-HF4 555:01:00 No Gauge ** 9/16"-18 *
      S10018
      10-6 Pump      		 10 20:01 0-3000 18 16.5 22.5 1/2" 1/2"
      015, 020 25:1, 35:1 0-6000
      30 55:01:00 0-10,000 3/8"
      50 95:01:00 0-15,000
      80 145:01:00 0-20,000
      100 180:01:00 0-30,000 1/4"
      151 240:01:00 0-30,000
      151-HF4 240:01:00 0-30,000 9/16"-18 *
      201 330:01:00 No Gauge ** 1/4"
      201-HF4 330:01:00 No Gauge ** 9/16"-18 *
      301-HF4 460:01:00 No Gauge ** 9/16"-18 *
      402-HF4 740:01:00 No Gauge ** 9/16"-18 *

      * Coned and threaded high pressure connection for 1/4" O.D. tubing.

      ** Consult factory if gauge is desired.

  • Ordering

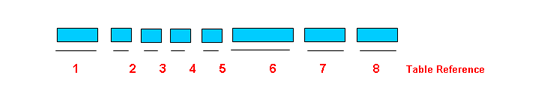

    • schydraulic-d&10seriespowerunitordering
      TABLE 1 Power Unit Designation
      S10016 10-4 Series Pump
      S10017 10-5 Series Pump
      S10018 10-6 Series Pump
      TABLE 2 Seal Compound - Air Motor (3)
      Blank Buna-N Nitrile (standard)
      V Viton
      TABLE 3 Seal Compound - Hydraulic Section
      Blank Buna-N Nitrile (standard)
      E EPR - ethylene propylene
      V Fluorocarbon
      * Consult factory for special compounds
      TABLE 4 Modifications
      0 Standard pump
      A "A" modification
      G Isolator - heavy duty (1,2)
      H Heavy duty (1)
      K "K" modification (1)
      N Isolator - "A" modification (1)
      P Isolator - "K" modification (1)
      Q Isolator - "A" and "K" modification (1)
      R Isolator (1)
      S Heavy duty - "K" modification (1,3)
      V Heavy duty - isolator - "K" modification (1,3)
      TABLE 5 Material of Construction - Hydraulic Section
      W Aluminum bronze & stainless steel
      (10-4, 10-5, 10-6 Series) standard stainless steel
      S (D5, D6 Series - old designation)
      C Cad plate carbon steel, stainless steel
      TABLE 6 Port Option
      Refer to pressure ratio charts for proper selection
      TABLE 7 Port option
      Blank Standard
      SAE Straight thread as indicated on chart
      HF4 9/16-18 x 1/4" OD tube 60K psi
      TABLE 8 Special Modification Model Designation
      Blank None
      M xxx (modification number)
      Notes: (1) Not available for 10-4 Series
      (2) "A" modification included with all "H" modifications
      (3) "A" modification included with all "H" modifications
      (3) Do not fill gap on a two digit description
  • Modifications

    • A Models:These models utilize dual seals in the hydraulic assembly with a bleed-off between the seals to atmosphere, thus providing a visual indication of hydraulic seal leakage. Used where contamination of the air motor from the hydraulic fluid being pumped is objectionable.

      		 schydraulic-amodd
      H Models: The "H" Models utilize special packing in the hydraulic assembly for maximum performance where hydraulic fluid media is contaminated with foreign matter, thus providing for a much greater life expectancy from the hydraulic seals than with standard o-ring seals. The "A" modification is included on all "H" models and the check valves have PTFE o-rings. schydraulic-hmod
      K Models: This models utilize a special air piston in the air motor assembly which decreases the stroke of the pump, thus minimizing the internal forces and increasing air motor life. Used in applications exhibiting rapid pressure losses, such as burst testing.
      R Models: The "R" Models are furnished with an isolator attachment which prevents the hydraulic piston retracting into the air motor during operation, thus providing for 100% non-contamination of the hydraulic assembly from the air motor. The isolator also acts as a heat barrier.
