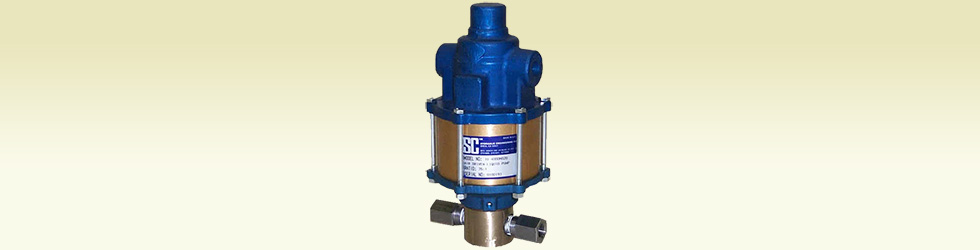

10-4 Liquid Pump

Product Features and Specifications

  • General Product Information
    • schydraulic-10-4pump
      HIGH OUTPUT CAPACITY
      GUARANTEED PERFORMANCE
      MULTIPLE OUTPUT CAPACITIES
      SIMPLE OPERATION PRINCIPLE
      DESIGNED FOR EASY MAINTENANCE
      WIDE RANGE OF OPERATING PRESSURES

      10-4 Series pumps have a 4" diameter air piston and a 1 1/4" stroke. Nine models are available with pressures up to 29,500 psig.

      The maximum air consumption of the pump is 28-SCFM at 100-psi drive-air pressure and free flow (zero outlet pressure), conditions at which the pump operates at maximum speed. As the pump builds outlet pressure, the operating speed, air consumption and liquid outlet flow all decrease. Once the pump reaches the outlet pressure corresponding to its specific pressure ratio, the pump stalls out (stops) and the operating speed, air consumption and liquid outlet flow all become zero.

  • Applications
    • Staking
      Piercing
      Blanking
      Pressing
      Clamping
      Metal forming
      Static and burst testing
      Hydraulic Press operation
      Flow testing requiring relatively low flows at high pressures
      Applications requiring extreme intermittent pressure and velocity commonly associated with water blasting and jetting.
  • Dimensions

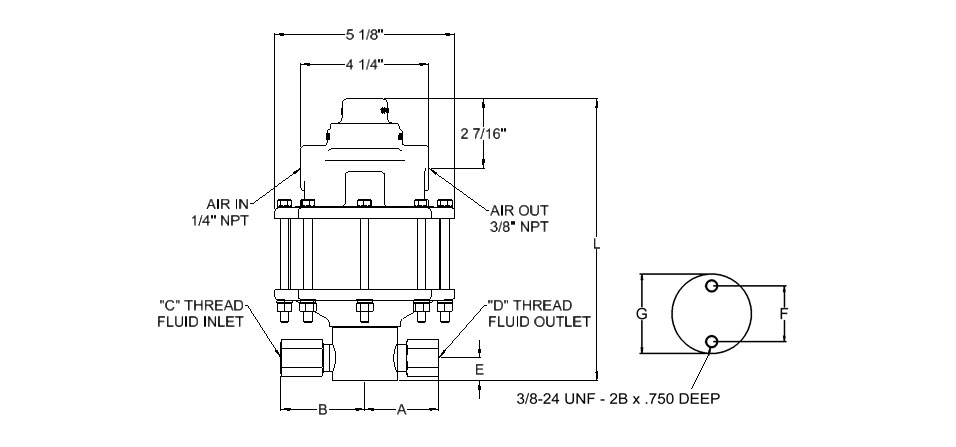

    • schydraulic-10-4pumpdims
      10-4 Series
      Model
      L A B NPT (Standard) E F G
      C Thread D Thread
      003 11.375 2.438 3 1/2" 3/8" 0.813 1.5 2.125
      005 11.188 2.438 3 1/2" 3/8" 0.813 1.5 2.125
      010 thru 015 11.063 2.438 2.438 3/8" 3/8" 0.813 1.5 2.125
      020 thru 030 10.063 2.438 2.438 3/8" 3/8" 0.813 1.5 2.125
      050 thru 125 10.500 2.375 2.313 3/8" 3/8" 0.813 1.5 2.125
      165 10.752 1.993 2.062 3/8" 9/16-18* 1.000 1.5 2.500

      *Coned and Threaded Hight Pressure Connection for 1/4" O.D. Tubing


      10-4
      Series
      Model
      Ratio Hydraulic
      Piston
      Diameter
      (in)
      Hydraulic
      Piston
      Area (in2)
      Volume
      per
      Stroke
      (in3)
      Air Pressure (PSI)
      10 20 30 40 50 60 70 80 90 100
      003 5 1.625 2.07 2.59 35 90 145 200 250 305 360 415 465 515
      005 10 1.1875 1.11 1.39 80 180 280 375 475 575 675 770 870 965
      010 15 0.875 0.601 0.751 160 340 520 700 880 1060 1240 1440 1600 1800
      015 30 0.6875 0.371 0.464 250 550 850 1150 1425 1725 2000 2300 2575 2850
      020 35 0.625 0.307 0.384 300 675 1050 1450 1800 2175 2525 2875 3225 3550
      030 55 0.5 0.196 0.245 500 1040 1620 2200 2750 3340 3850 4475 5000 5550
      050 100 0.375 0.11 0.138 950 1850 2900 3800 4850 5900 6875 7900 8900 9900
      080 140 0.3125 0.077 0.096 1300 2700 4150 5700 7100 8600 9900 11200 12600 14000
      125 220 0.25 0.049 0.061 2100 4400 6750 8750 11250 13250 15250 17500 19750 22000
      165 300 0.2180 0.037 0.047 3400 6000 8500 12400 14600 17000 20900 23500 26900 29500

      All pumps are recommended for intermittent duty.

  • Ordering
    • schydraulic-10&Dordering

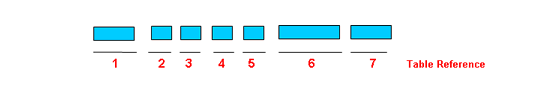

      TABLE 1 Pump Series Designation (4)
      TABLE 2 Seal Compound - Air Motor
      0 Buna-N (standard)
      V Viton
      TABLE 3 Seal Compound - Hydraulic Section
      Blank Standard - No Modifications
      0 Buna-N nitrile (standard)
      E EPR - ethylene propylene
      V Fluorocarbon
      * Consult factory for special compounds
      016 Remote Pilot, Distance Piece
      TABLE 4 Modifications
      0 Standard Pump
      A Standard Pump
      C Chevron Seals
      TABLE 5 Material of Construction - Hydraulic Section
      W Aluminum bronze & stainless steel (standard)
      S Stainless steel
      C Cad plate carbon steel, stainless steel (1)
      TABLE 6 Model Designation - Pressure Ratio
      Refer to pressure ratio charts for proper selection
      TABLE 7 Port Option
      Blank Standard Pump
      SAE Straight thread as indicated on chart
      HF4 9/16-18 x 1/4" OD tube 60K psi

      Additional special modifications may be included with an "M" suffix at the end of the model number.

      Notes: (1) 25 piece minimum order
  • Modifications
    • A Models:These models utilize dual seals in the hydraulic assembly with a bleed-off between the seals to atmosphere, thus providing a visual indication of hydraulic seal leakage. Used where contamination of the air motor from the hydraulic fluid being pumped is objectionable.

  • Performance Chart

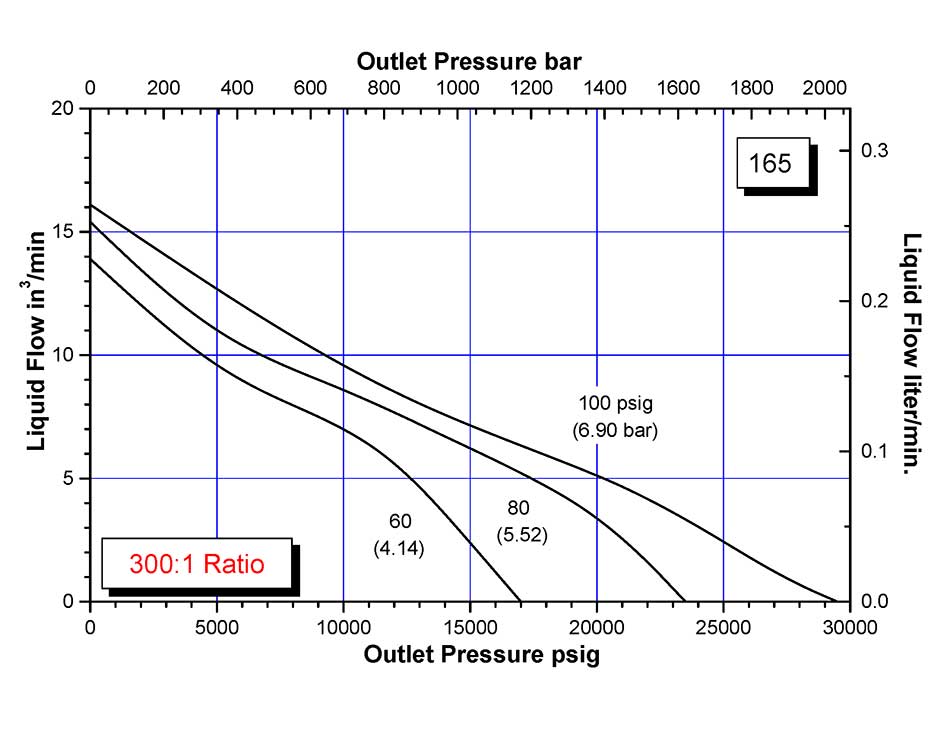

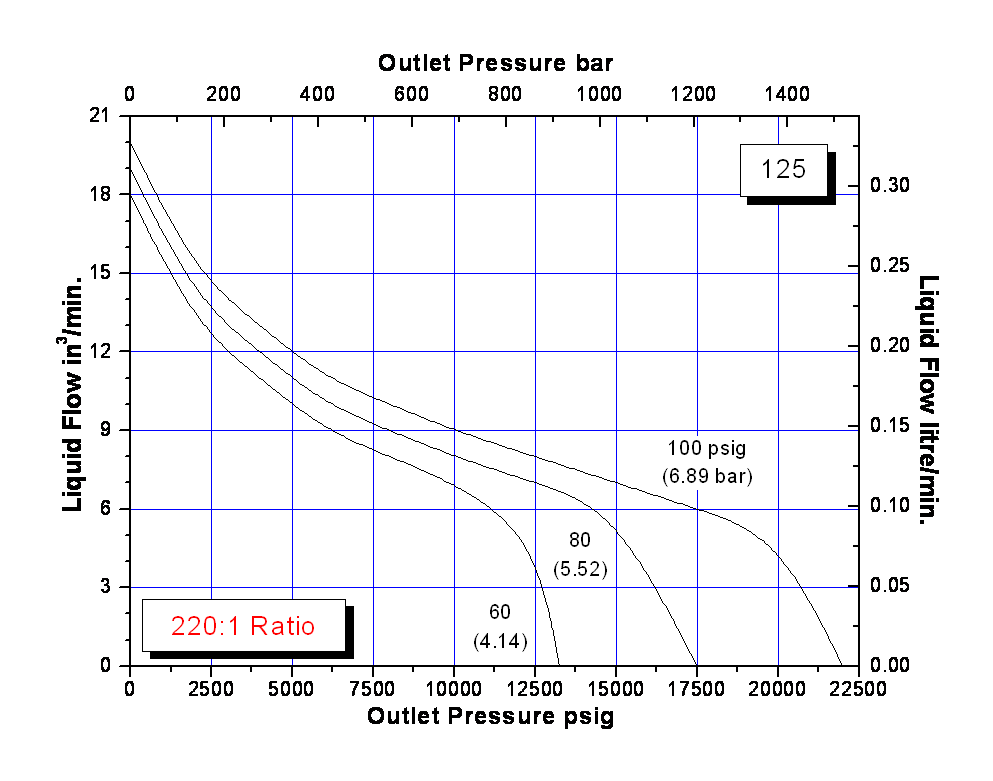

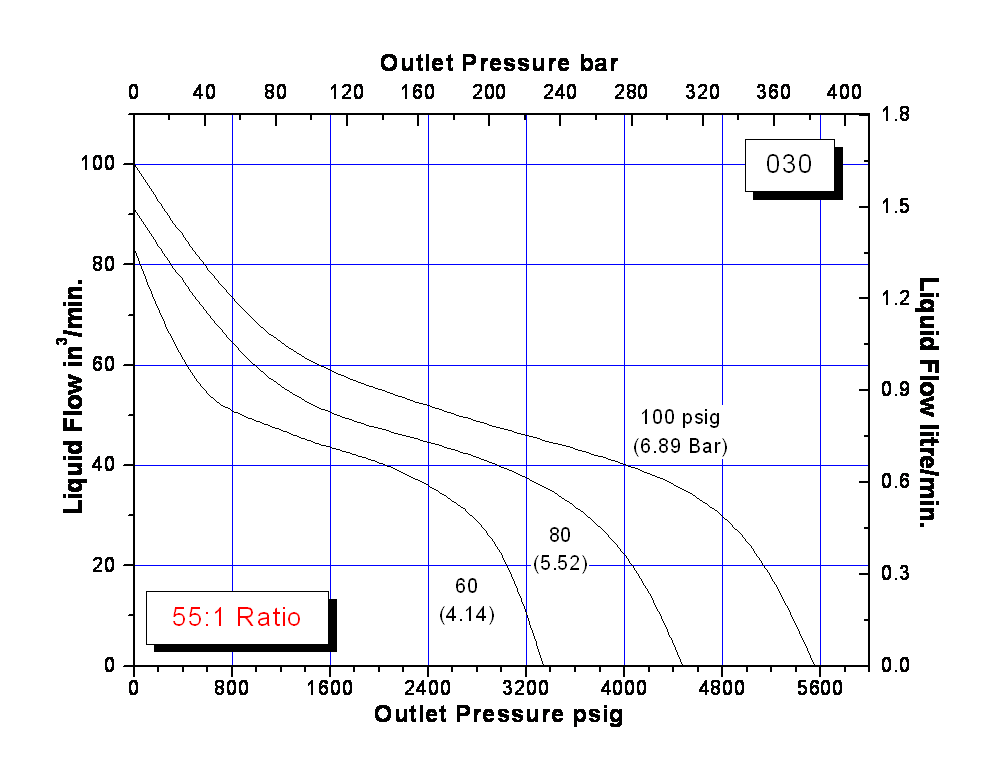

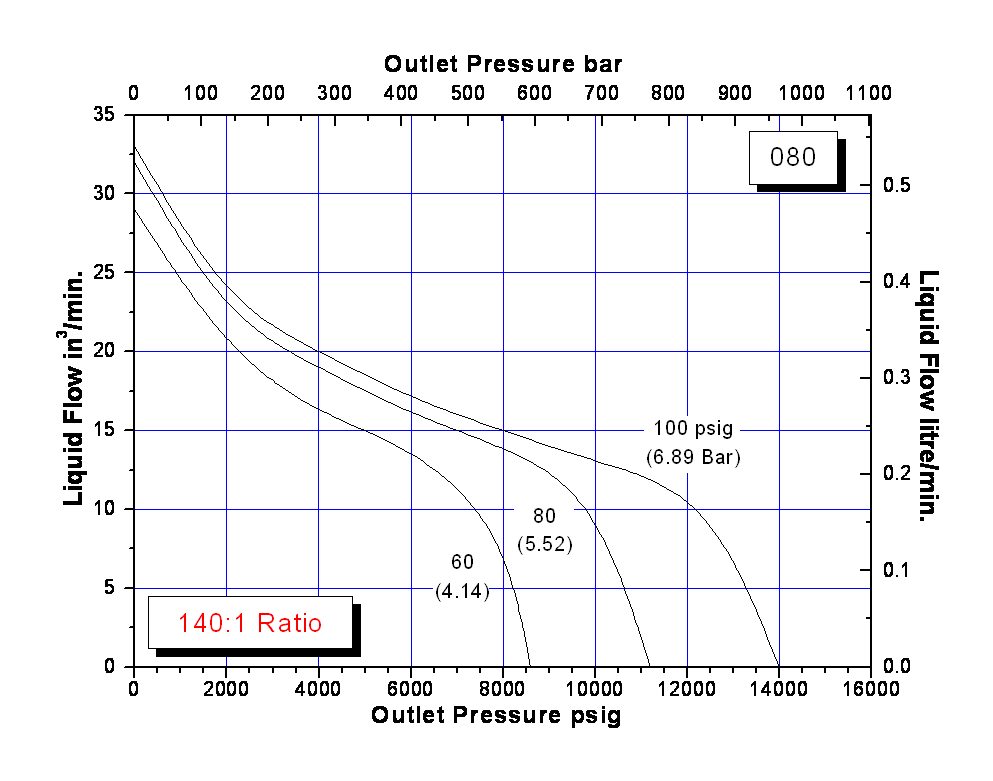

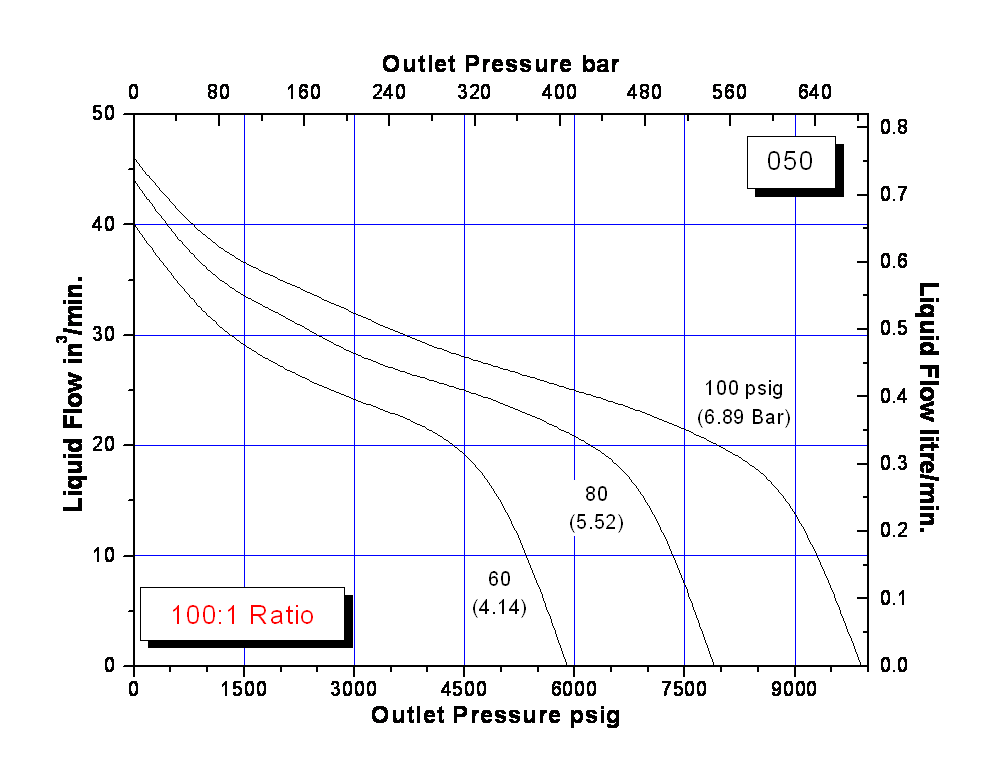

    • schydraulic-l6-40perfchart schydraulic-l6-60perfchart schydraulic-l6-100perfchart schydraulic-l6-100perfchart schydraulic-l6-100perfchart schydraulic-l6-100perfchart schydraulic-l6-100perfchart schydraulic-l6-100perfchart schydraulic-l6-100perfchart schydraulic-l6-100perfchart
