ABD-2 Air Booster System

Product Features and Specifications

  • General Product Information
    • schydraulic-abd-2airboostersystem
      PRESSURES UP TO 250-PSI
      INCLUDES AIR DRIVE CONTROLS
      WEIGHS APPROXIMATELY 145-LBS
      EQUIPPED WITH ONE ABD-2 BOOSTER
      HIGH FLOW, LOW PRESSURE APPLICATIONS
      15-GALLON ASME RECEIVER TO INCREASE FLOW CAPACITY

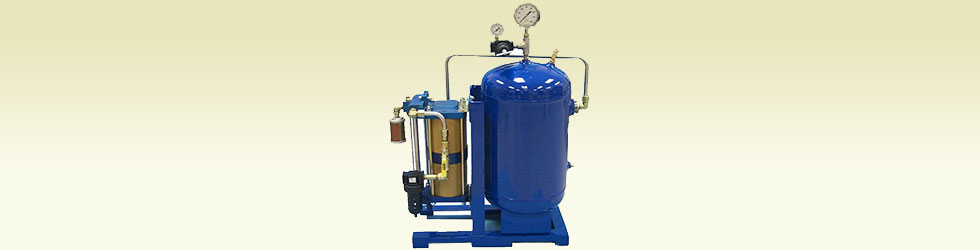

      The S10320-ABD-2 Air Booster System is built for high volume applications requiring up to 250 psi air reserve in a 15 gallon ASME receiver with our double-acting 2:1 ratio air booster.

      The booster and receiver is mounted on a heavy duty skid with forklift provisions and weighs approximately 145 pounds. Installation is simple with a 3/4" NPT inlet to an inline filter and a 1/2" NPT outlet high pressure regulator.

      The receiver is protected with a safety relief valve and has both receiver and regulator pressure gauges.

      This system is a low cost solution when high pressure and relative high volumes of air is required in a pneumatic application. Contact us or one of our authorized distributors for application or sizing assistance.

  • Applications
    • Increase plant air pressure
      Applications requiring higher flow
      Increase maximum torque on small air tools
      Increase marginal air pressure to valve actuators
      Extra force for small air clamps, roll tensioners, assembly machines and air presses

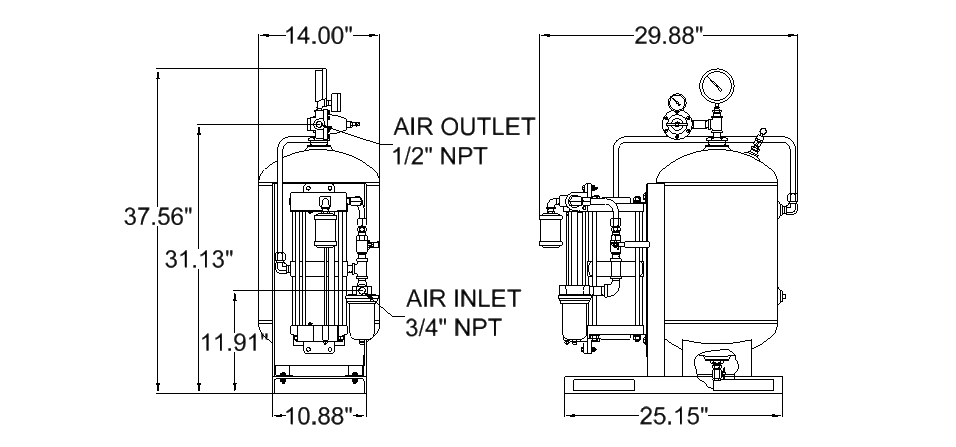

  • Dimensions
    • schydraulic-abd-2boostersystemdims
      MODEL SELECTION CHART
      Model No. Maximum Rated
      Air Supply (Ps)      		 Maximum Rated
      Air Outlet (Po)      		 Connection Ports Static Outlet
      Stall Pressure      		 Actual Area
      Ratio      		 Displacement
      Per Stroke
      (in3 per cycle)
      Air Drive Air Inlet Air Outlet
      ABD-2 150 psig 300 psig 3/4" NPT 1/2" NPT 1/2" NPT Pa + Ps 2:01 223
      10.3 bar 21 bar
  • Ordering
    • schydraulic-10320-abd-2ordering
      TABLE 1 Air Booster Series (1)
      ABD Single Stage Double Acting
      TABLE 2 Modification
      Blank No Modification
      M202 Remote Pilot
      TABLE 3 Pressure Ratio
      2 ABD
      Notes: (1) Do not fill gap on a two digit description
  • Modifications

    • M202 - Remote Pilot:This option provides a 1/8'' NPT female port for remotely controlling the start/stop of the pump by connecting an external air signal to actuate the air cycling valve.

      		schydraulic-m002mod

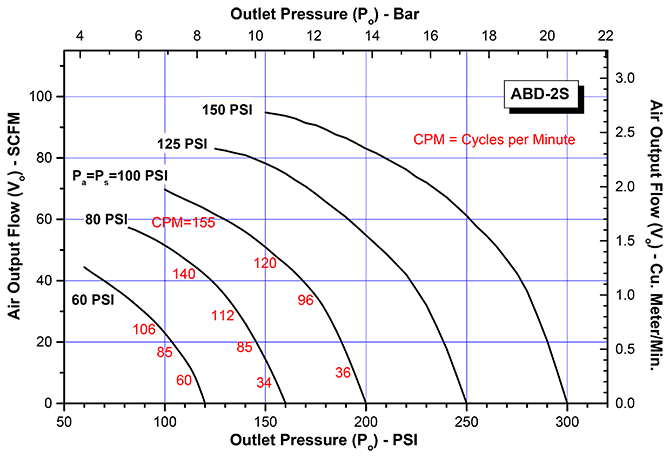

  • Performance Chart
    • schydraulic-abd-2perfchart
