30 Series Power Units

Product Features and Specifications

  • General Product Information
    • schydraulic-30seriespowerunit
      EASY TO INSTALL
      COMPACT AND LIGHTWEIGHT
      PRESSURES UP TO 65,000-PSI
      COMPONENTS INSTALLED ON A BASE PLATE
      AVAILABLE WITH ALL 10-SERIES PUMP MODELS

      The most compact power unit available within the 10 Series pumps. SC Hydraulic engineers the 30 Series so as to minimize the space required by the unit. Light weight, easy to install.

      Only three connections are required; air, fluid supply, and work port. The unit has two pressure ports, one equipped with a shut-off or bleed valve, which provides for ease of operation. An air exhaust muffler is included for quiet operation.

      A stainless steel liquid filled gauge is included on units rated up to 30,000 psi and are optional for higher pressure systems.

  • Applications
    • Staking
      Piercing
      Pressing
      Blanking
      Clamping
      Flow testing
      Metal forming
      Static and burst testing
      Hydraulic press operation

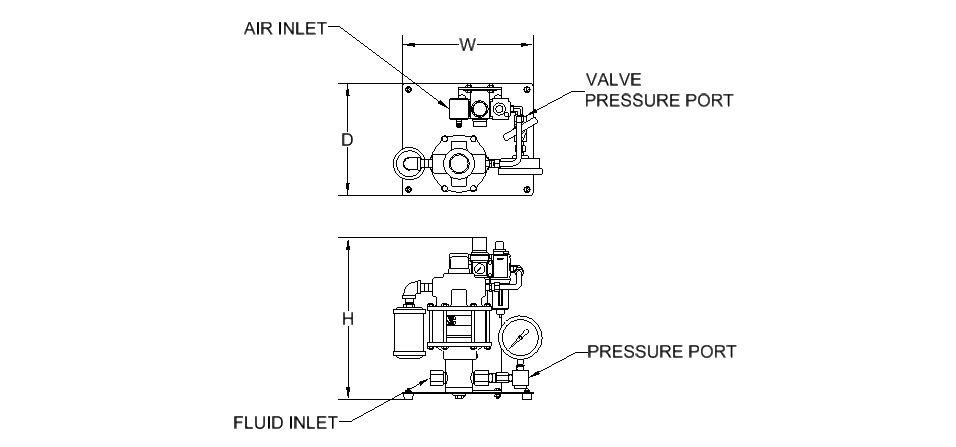

  • Dimensions
    • sschydraulic-30seriespowerunitdims
      Model No.
      Standard
      10 Series Hyd
      Section Code
      Pump Ratio Gauge
      Pressure
      Overall Dimensions (in) Ports NPT/High Pressure
      W D H Air Drive Inlet Outlet
      30-4 Series 003 5:1 0-1,000 10.5 9 13 1/4" 1/2" 3/8"
      005 10:1 0-2,000
      010 15:1 0-3,000 3/8" 1/4"
      015, 020 30:1, 35:1 0-6,000
      030 55:1 0-10,000
      050 100:1 0-15,000
      080 140:1 0-20,000
      125 220:1 0-30,000
      30-5 Series 005, 007 10:1, 12:1 0-2,000 12 12 18 1/2" 1" 1/2"
      010 20:1 0-3,000
      015 25:1 0-5,000 1/2" 3/8"
      018, 020 30:1, 35:1 0-6,000
      030, 040 55:1, 70:1 0-10,000
      045 85:1 0-15,000
      060 105:1 0-15,000 1/4"
      080 140:1 0-20,000 3/8"
      080-HF4 140:1 0-20,000 9/16"-18 *
      100 195:1 0-30,000 1/4"
      100-HF4 195:1 0-30,000 9/16"-18 *
      160 280:1 0-30,000 1/4"
      160-HF4 280:1 0-30,000 9/16"-18 *
      250 440:1 No Gauge ** 1/4"
      250-HF4 440:1 No Gauge ** 9/16"-18 *
      350-HF4 555:1 No Gauge ** 9/16"-18 *
      30-6 Series 010 20:1 0-3000 12 12 21 1/2" 1" 1/2"
      015, 020 25:1, 35:1 0-6000
      030 55:1 0-10,000 1/2" 3/8"
      050 95:1 0-15,000
      080 145:1 0-20,000
      100 180:1 0-30,000 1/4"
      151 240:1 0-30,000 3/8"
      151-HF4 240:1 0-30,000 9/16"-18 *
      201 330:1 No Gauge ** 1/4"
      201-HF4 330:1 No Gauge ** 9/16"-18 *
      301-HF4  460:1 No Gauge ** 9/16"-18 *
      402-HF4  740:1 No Gauge ** 9/16"-18 *

      * Coned and threaded high pressure connection for 1/4" O.D. tubing.

      ** Consult factory if gauge is desired.

  • Ordering
    • schydraulic-30seriespowerunitordering
      TABLE 1 Power Unit Designation (4)
      3 30 Series
      TABLE 2 Reservoir Option
      0 No Reservoir
      TABLE 3 Pump Series Designation
      4 10-4 Series
      5 10-5 Series
      6 10-6 Series
      TABLE 4 Seal Compound - Air Motor
      0 Buna-N nitrile (standard)
      V Viton
      TABLE 5 Seal Compound - Hydraulic Section
      0 Buna-N nitrile (standard)
      E EPR - ethylene propylene
      V Fluorocarbon
      * Consult factory for special compounds
      TABLE 6 Modifications
      0 Standard pump
      A "A" modification
      B Bottom inlet (1)
      D Bottom inlet - heavy duty
      E Bottom inlet - "A" modification (1)
      G Isolator - heavy duty (1,3)
      H Heavy duty (1)
      J Bottom inlet - "K" modification (1)
      K "K" modification (1)
      M Bottom inlet - "A" and "K" modification (1)
      N Isolator - "A" modification (1)
      P Isolator - "K" modification (1)
      Q Isolator - "A" and "K" modification (1)
      R Isolator (1)
      S Heavy duty - "K" modification (1,3)
      U Heavy duty - bottom inlet - "K" mod. (1,3)
      V Heavy duty - isolator - "K" modification (1,3)
      TABLE 7 Material of Construction - Hydraulic Section
      W Aluminum bronze & stainless steel
      S All stainless steel
      C Cad plate carbon steel, stainless steel (2)
      TABLE 8 Pressure ratio model designation
      Refer to pressure ratio charts for proper selection
      Use suffix "L" if lube style pump is included, leave blank for non-lube "Dry Seal" type
      TABLE 9 Port option
      Blank Standard
      SAE Straight thread as indicated on chart
      HF4 9/16-18 x 1/4" OD tube 60K psi
      Notes: (1) Do not fill gap on a two digit description
      (2) 25 piece minimum order
      (3) "A" modification included with all "H" modifications
      (4) Do not fill gap on a two digit description
  • Modifications
    • A Models:These models utilize dual seals in the hydraulic assembly with a bleed-off between the seals to atmosphere, thus providing a visual indication of hydraulic seal leakage. Used where contamination of the air motor from the hydraulic fluid being pumped is objectionable.

      schydraulic-amodd
      B Models: The "B" models have a bottom inlet connection for convenient tank top installation or alternate mounting configuration. schydraulic-bmod
      H Models: The "H" Models utilize special packing in the hydraulic assembly for maximum performance where hydraulic fluid media is contaminated with foreign matter, thus providing for a much greater life expectancy from the hydraulic seals than with standard o-ring seals. The "A" modification is included on all "H" models and the check valves have PTFE o-rings. schydraulic-hmod
      K Models: This models utilize a special air piston in the air motor assembly which decreases the stroke of the pump, thus minimizing the internal forces and increasing air motor life. Used in applications exhibiting rapid pressure losses, such as burst testing.
      R Models: The "R" Models are furnished with an isolator attachment which prevents the hydraulic piston retracting into the air motor during operation, thus providing for 100% non-contamination of the hydraulic assembly from the air motor. The isolator also acts as a heat barrier.
