AB-2 & AB-4 Air Booster Systems

Product Features and Specifications

  • General Product Information
    • schydraulic-10-6pump
      INCLUDES AIR DRIVE CONTROLS
      PRESSURES UP TO 555-PSI (AB-4)
      LOW FLOW, LOW PRESSURE APPLICATIONS
      EQUIPPED WITH ONE AB-2 OR AB-4 BOOSTER
      COMPACT AND LIGHTWEIGHT (APPROX. 35-LBS)
      HIGH-PRESSURE RECEIVER TO INCREASE FLOW CAPACITY

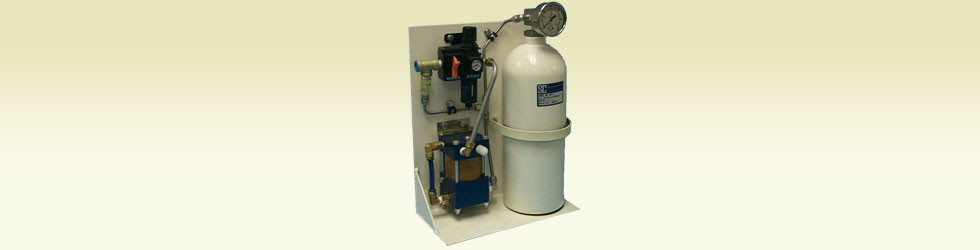

      The S10320-AB-2 and S10320-AB-4 Systems provide the most compact sized unit for air booster requirements. Both units consist or either the 2:1 ratio or 4:1 ratio booster, filter/regulator combination with shut-off and air pressure gauge, 200 cubic inch reservoir tank with high pressure gauge.

      The components are mounted on a sturdy free standing base and plate. The complete system measures 18 1/4" high by 12 1/2" wide by 6" deep and weighs about 35 pounds.

      This system is perfect for low flow cycling applications when a reserve of high pressure air (up to 600 psi) is required. The reservoir allows the booster to build up pressure between cycles for higher flow ability than the booster can deliver alone.

  • Applications
    • Top off high pressure tires
      Increase plant air pressure
      Release spring actuated brakes
      Increase maximum torque on small air tools
      Increase marginal air pressure to valve actuators
      Extra force for small air clamps, roll tensioners, assembly machines and air presses

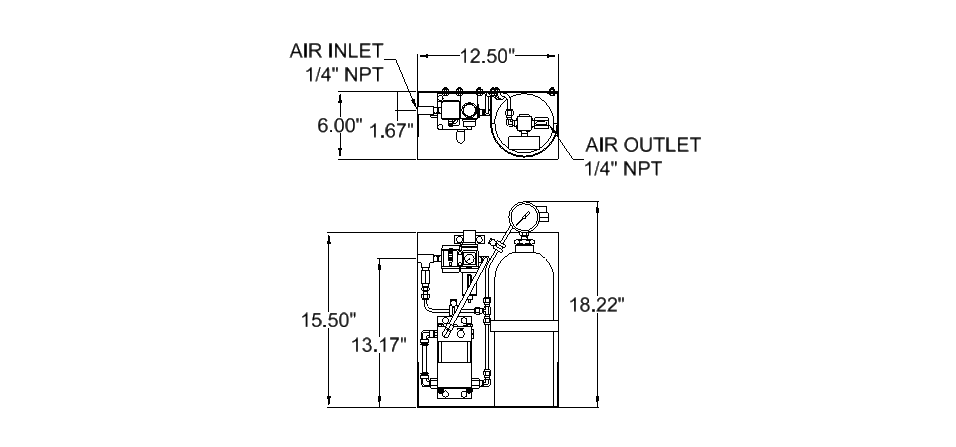

  • Dimensions
    • schydraulic-ab-2boostersystemdims
      MODEL SELECTION CHART
      Model No. Maximum Rated Air Supply (Ps) Maximum Rated Air Outlet (Po) Connection Ports Static Outlet
      Stall Pressure      		 Actual Area Ratio Displacement Per Stroke
      (in3 per cycle)
      Air Drive Air Inlet Air Outlet
      AB-2 150 psig 300 psig 1/4" NPT 1/4" NPT 2 Pa 2:01 2.9
      10.3 bar 21 bar
      AB-4 150 psig 600 psig 1/4" NPT 1/4" NPT 4 Pa 4:01 1.4
      10.3 bar 41 bar

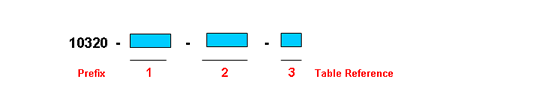

  • Ordering
    • schydraulic-10320-abordering
      TABLE 1 Air Booster Series (1)
      AB Single Stage
      TABLE 2 Modification
      Blank No Modification
      M202 Remote Pilot
      TABLE 3 Pressure Ratio
      2 AB
      4 AB
      Notes: (1) Do not fill gap on a two digit description
  • Modifications

    • M202 - Remote Pilot:This option provides a 1/8'' NPT female port for remotely controlling the start/stop of the pump by connecting an external air signal to actuate the air cycling valve.

      		 schydraulic-m002mod
  • Performance Chart
    • schydraulic-ab-2perfchart schydraulic-ab-4perfchart
