Gas Booster System Ordering

Product Features and Specifications

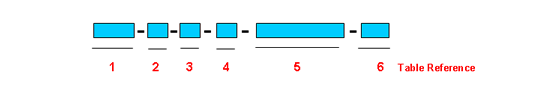

  • How to Order Table
    • schydraulic-gasboostersystemsordering
      TABLE 1 Gas System Designation (based on max PSI)
      S10620 System to 10,000 PSI w/ no relief valve
      S10621 System to 10,000 PSI w/ 6K relief valve
      S10622 System to 10,000 PSI w/ 10K relief valve
      S10630 System to 20,000 PSI w/ no relief valve
      S10631 System to 20,000 PSI w/ 20K relief valve
      S10641 System to 25,000 PSI w/ 25K relief valve
      TABLE 2 Air Pilot Switch Low Side
      00 No switch (standard)
      XX N.C. Use code from list below
      TABLE 3 Air Pilot Switch High Side
      00 No switch (standard)
      002 Remote Pilot
      XX N.C. Use code from list below
      TABLE 4 Gas Filter
      0 No Filter
      1 Filter on inlet, 15 µ (standard)
      2 Filter on outlet, as specified
      3 Filter on inlet and outlet
      TABLE 5 Booster Model Number
      # Model number including modification
      TABLE 6 Service Option
      Blank Standard
  • Air Pilot Switch Codes

    • Air pilot switch valves can used to automatically start and stop a gas booster system so that gas supplies are not depleted completely and/or the system stops at a predetermined pressure. When using a automatic start or stop a remote pilot must be specified on the gas booster. SC Hydraulic Engineering will preset the valves to your requirements if requested.

      Use the chart below to select the desired air pilot switch for your gas booster system if selected as an option.

      Choose a normally closed N.C. for the automatic start and a normally open N.O. for the automatic stop.

      Select the proper code from column three and add to the booster system model number.

      SC Hydraulic Engineering will adjust the automatic start and/or stop at the factory.

      AIR PILOT SWITCH VALVE SELECTION
      Model No.* Type System
      Order
      Code      		 Sensing Port Adjustable Range (psig)
      Pressure setting at factory
      Specify increasing/decreasing      		 Air Valves
      150 psig Maximum
      Operating Pressure      		 Air Valve
      Configure
      Option
      Size Max.
      Pressure
      Normally Closed Normally Open Port Size Cv Factor
      APS-100-01 A 01 1/4" NPT 15,000 psi
      O2 = 5,000      		 3,500-10,000 2,400-10,000 1/8" npt .20
      UP TO
      11 SCFM      		 N.C. &
      N.O.
      APS-070-02 02 1,400-7,000 940-6,400
      APS-051-03 03 800-5,100 700-4,600
      APS-013-04 04 340-1,300 260-1,200
      APS-148-05 05 3,500-14,800 2,500-12,000
      APS-100-06 B 06 1/4" NPT 15,000 psi
      O2 = 5,000      		 3,500-10,000   1/8" npt .13
      UP TO
      7 SCFM      		 N.C.
      APS-070-07 07 1,360-7,000
      APS-050-08 08 680-5,000
      APS-012-09 09 230-1,240
      APS-005-10 A 10 1/4" NPT 3,000 psi 170-550 125-510 1/8" npt .20
      UP TO
      11 SCFM      		 N.O. &
      N.C.
      APS-002-11 11 70-210 50-190
      APS-001-12 12 50-130 40-130
      APS-000-13 13 25-50 20-46
      APS-005-14 B 14 1/4" NPT 145-520   1/8" npt .13
      UP TO
      7 SCFM      		 N.C.
      APS-002-15 15 55-210
      APS-001-16 16 30-135
      APS-000-17 17 15-45
