L7-120 High Flow Liquid Pump

Product Features and Specifications

  • General Product Information
    • schydraulic-l6pump
      HIGH FLOW CAPACITY
      DOUBLE ACTING, DOUBLE AIR MOTOR
      COMPATIBLE WITH MOST FLUIDS
      STAINLESS STEEL WETTED PARTS
      AIR OPERATED - NO ELECTRICITY NEEDED
      PRESSURE UP TO 12,800 PSI

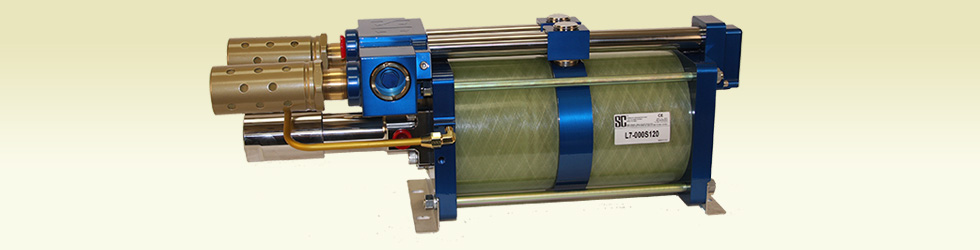

      The SC L7 Series pump has a 7" diameter air drive section and stainless steel wetted parts in the hydraulic section. This double acting pump is equipped with a double air motor drive section that roughly doubles the liquid outlet pressure compared to an equivalent single air motor design. It is capable of hydraulic pressures up to 12,800-psi at 100-psi drive air pressure.

      This pump is ideal for high flow at relatively high pressure applications. Nominal outlet flow ranges between 2-gpm to 1-gpm depending on outlet pressure. Maximum air consumption is approximately 210-SCFM at free flow (zero output pressure).

      It is designed to operate with air drive pressures between 15-psi and 100-psi under normal conditions. Typical applications include choke control operation, hydrostatic pressure testing and press applications.

  • Applications
    • Hydrostatic pressure testing
      High flow power units
      Blowout preventer (BOP) systems
      Sub-sea valve controls
      Choke control operations
      Bolt tensioing

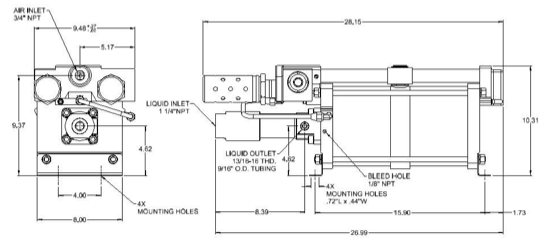

  • Dimensions
    • schydraulic-l6pumpdims
      Dash
      Number
      Actual
      Ratio
      Max. Outlet
      Pressure
      (100 psig
      Air Supply)
      Displacement
      Per Cycle
      Cu. In.
      Connection Ports NPT
      A
      Inlet
      B
      Outlet
      -120 134:1 12,800 4.7 1 1/4" NPT 13/16-16*

      *Coned and threaded connection for 9/16" OD tube

  • Ordering

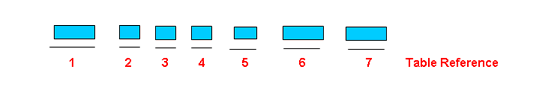

    • schydraulic-l6ordering
      TABLE 1 Pump Series Designation
      L7 7" Bore Drive Air Motor Pump
      TABLE 2 Air Motor Seals
      0 Buna-N (standard)
      V Viton®
      TABLE 3 Hydraulic Section Seals
      0 UHMWPE/Buna-N
      V UHMWPE/Viton®
      E UHMWPE/EPR (Ethylene Propylene)
      TABLE 4 Modifications
      0 No modification
      TABLE 5 Hydraulic Section Material
      S Stainless Steel
      TABLE 6 Actual Area Ratio
      120 134:1 Actual Area Ratio
      TABLE 7 Suffix Modifications
      BLANK No modification (Remote Pilot Included)
      M014 Counter Port, 5/8-18 UNF-2B Thd

      Additional modifications may be included with an "M" suffix at the end of the model number.

  • Modifications
    • Remote Pilot: This option provides a 1/8" NPT female port for remotely controlling the start/stop of the pump by connecting an external air signal to actuate the air cycling valve. This modification is built in as standard and no special number is needed when ordering.

      chydraulic-m002mod

      M014 - Counter Port: This option provides a 5/8-18-UNF thread port on the air motor section of the pump for installing a mechanical cycle counter.

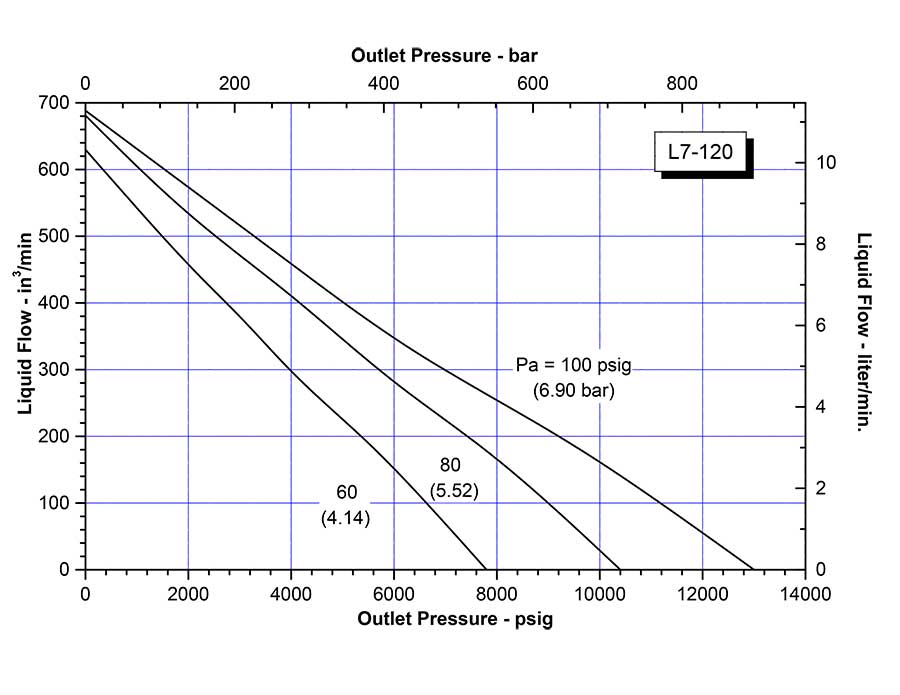

  • Performance Chart
    • schydraulic-l7-120perfchart
